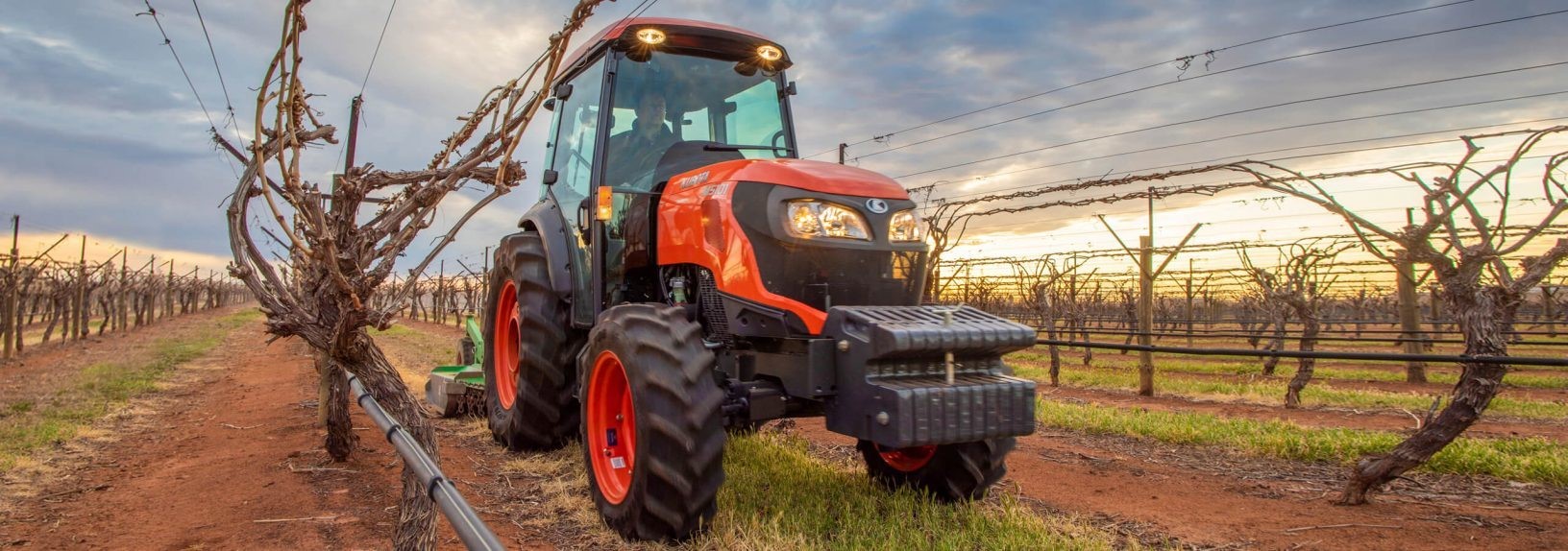

At just under 1.4m wide the M5001N Series can go where standard-width tractors can’t, letting you work with spreaders, sprayers, trimmers, leaf removers, and more in the tight spaces between rows of trees and vines.

The ability to turn tightly from one row to the next, thanks to Bi-Speed turning, ensures the productivity you expect. All M5001N series models feature 36 speed transmissions and enhanced hydraulic capabilities.

Get Finance
View Specs

DOWNLOAD BROCHURES

Kubota_Tractor_M5091_M5101_M5111

TALK TO A SALESPERSON

This field is required
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.
reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


Engine

Name M5091DCN-DS M5101DCN-DS M5091DN-DS M5101DN-DS
Fuel Type Diesel Diesel Diesel Diesel
Cylinders 4 4 4 4
Engine Model Kubota V3800 Kubota V3800 Kubota V3800 Kubota V3800
Engine Gross 93 hp 105 hp 87 hp 105 hp
PTO 75 hp 88 hp 78 hp 88 hp
Displacement 3,769 cc 3,769 cc 3,769 cc 3,769 cc
Fuel tank Capacity 76 l 76 l 76 l 76 l
Rated Speed 2,600 rpm 2,600 rpm 2,600 rpm 2,600 rpm



Dimensions

Name M5091DCN-DS M5101DCN-DS M5091DN-DS M5101DN-DS
Length 3,750 mm 3,750 mm 3,750 mm 3,750 mm
Width 1,420 mm 1,420 mm 1,360 mm 1,420 mm
Height 2,310 mm 2,310 mm 2,290 mm 2,310 mm
Wheelbase 2,130 mm 2,130 mm 2,130 mm 2,130 mm
Ground Clearance 420 mm 420 mm 290 mm 420 mm
Turning Radius 3.8 m 3.8 m 3.8 m 3.8 m
Tractor Weight 2,600 kg 2,600 kg 2,490 kg 2,600 kg
