MERCURY

Advanced air system

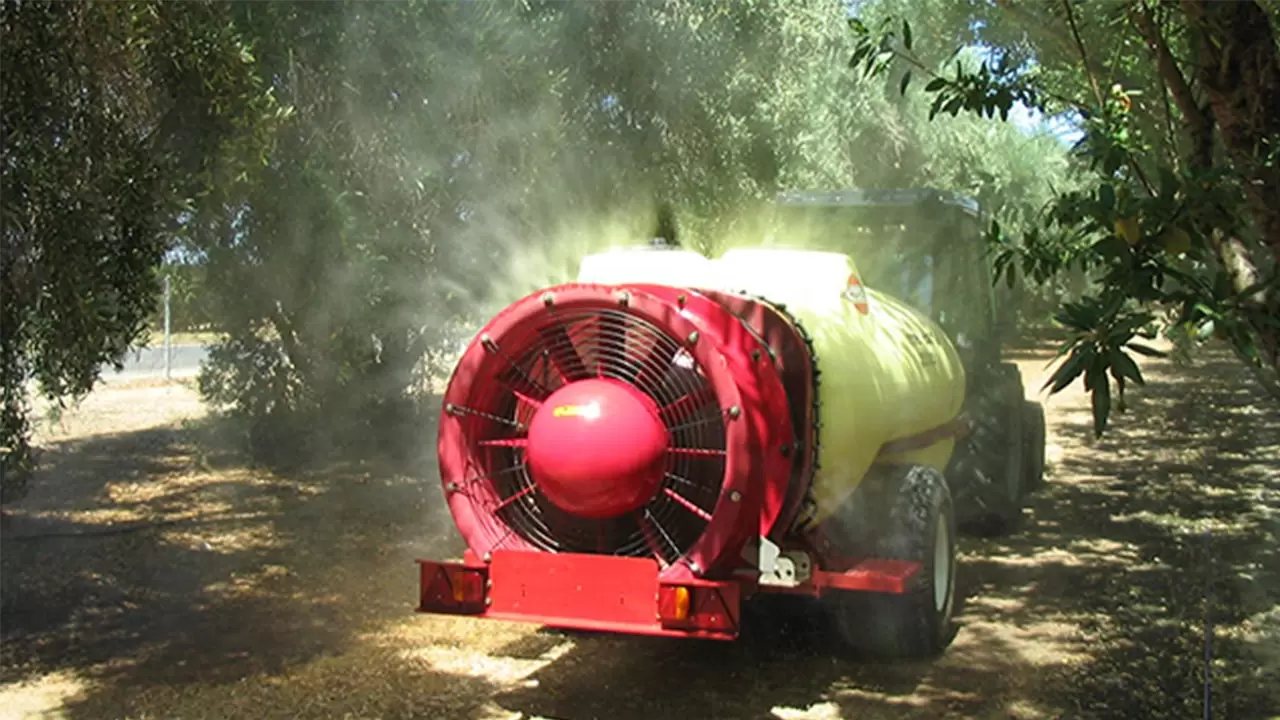

The MERCURY air system is connected via a heavy duty gearbox designed to drive a large fan at high power, to optimise efficient air throughput. The 650mm or 850mm fan features shock and fragmentation-resistant composite fan blades, connected to the gearbox via a centrifugal clutch for smooth engagement. The streamlined polyethylene fan housing is aerodynamically optimised, with a clutch dome and air vanes to improve airflow and distribution around the fan. The fan housing itself provides maximum impact resistance and safety.

High volume output

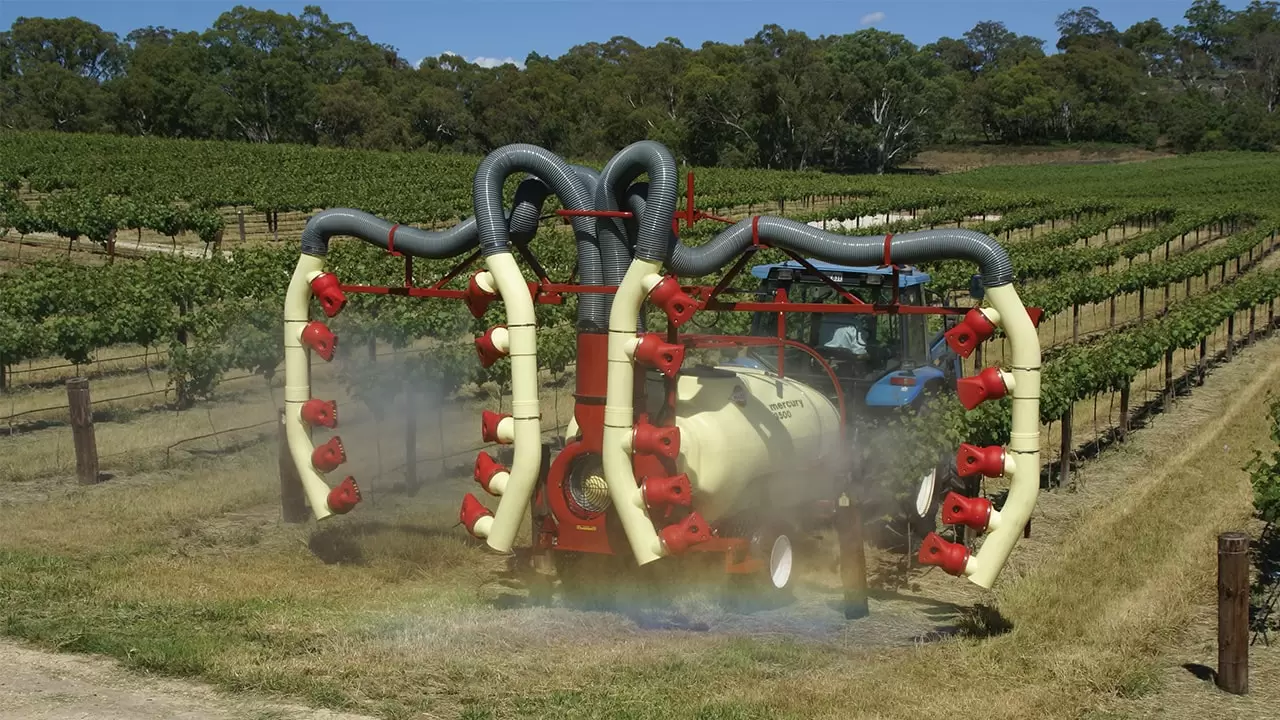

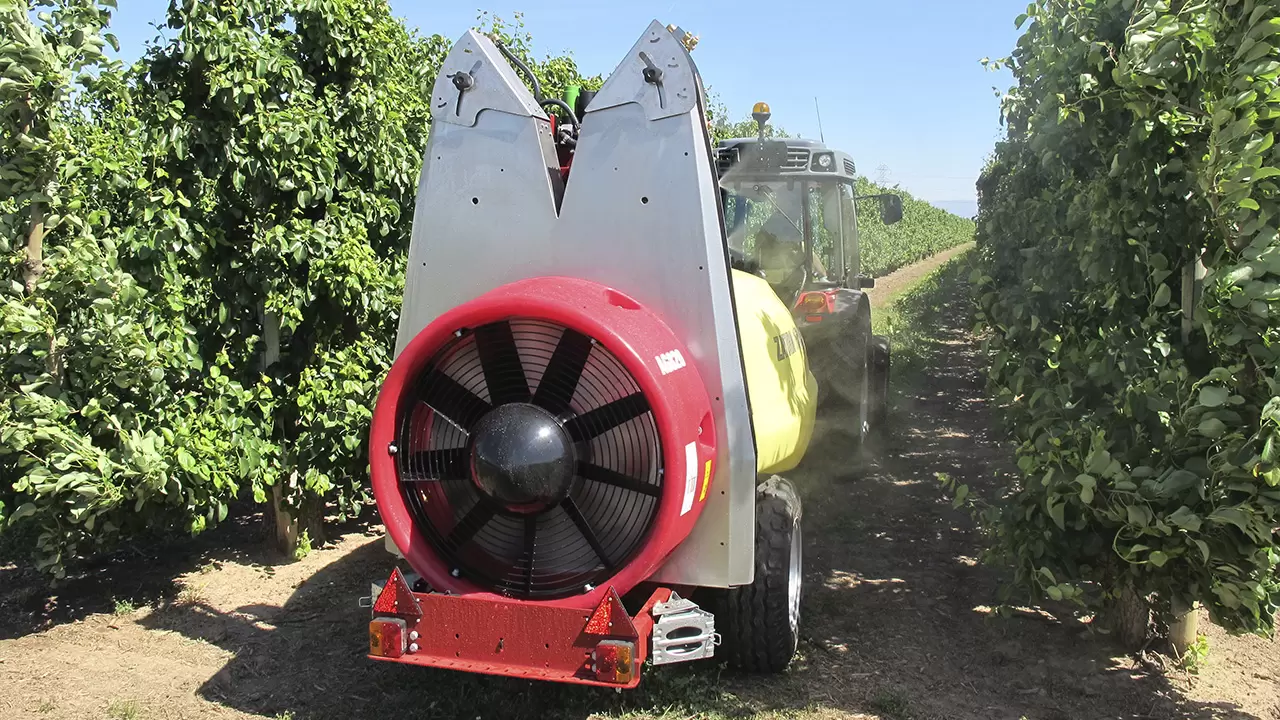

Axial fan MERCURY can be fitted with large stainless steel tree or vine deflectors, designed to maximise spray to the target and minimise off-target drift. Adjustable deflectors with top vanes provide extra control over the spray, allowing less to escape over the tops of the target plants. Large adjustable bottom deflectors direct spray away from the ground and up into the underside of the canopy. Turbine fans can be connected to a number of hydro-pneumatic air-sheer systems that target low volume spray directly into the plants with outstanding control, canopy penetration and drift. These include arrayed spray heads with 2 to 5 nozzles, the convergent COVAMAX system, and the high velocity CANNON.

TALK TO A SALESPERSON

This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


Tank, litres 2300 3500 4000
Agitation 15 15 15
Agitation 2 Venturi tank bottom, another front and 2 in the wheel area 2 Venturi tank bottom, another front and 2 in the wheel area 2 Venturi tank bottom, another front and 2 in the wheel area
Level indicator Transparent wet tube level indicator Transparent wet tube level indicator Transparent wet tube level indicator
Diaphragm HARDI pump UN 123 l/min UN 147 l/min UN 147 l/min
Hydraulic brakes Yes Yes Yes
Road homologation Yes Yes Yes
Wheels 340/55-16 12PR 400/60 - 15,5 14PR 400/60 - 15,5 14PR
Track width, m 1,25 1,4 1,4
Overall width, m 1,7 1,8 1,8
Lights Yes Yes Yes
Drawbar Turnable "V" STD Turnable HD Turnable HD
PTO Shaft T-300-1 Homokinectic T-300-1 Homokinectic T-300-1 Homokinectic
Operating unit CB/2 (2 fluid section with elec. valves with compensated returns) CB/2 (2 fluid section with elec. valves with compensated returns) CB/2 (2 fluid section with elec. valves with compensated returns)
Section filters 2 inline filters 2 inline filters 2 inline filters
Fluid box FB3610 (Standard) FB3610 (Standard) FB3610 (Standard)
Gearbox 2 gears + neutral (3,5 / n / 4,4) 2 gears + neutral (3,5 / n / 4,4) 2 gears + neutral (3,5 / n / 4,4)

ABOUT HARDI

HARDI AUSTRALIA PTY LTD is a subsidiary of HARDI INTERNATIONAL, a world leader in sprayer technology. The majority of HARDI sprayers and booms sold in Australia and New Zealand are manufactured here. We employ more than 100 engineering, testing, distribution and support staff in 15,000 square metres of modern facilities, located on our 10-hectare site in Adelaide, South Australia.

LEADING THE WORLD

For over 60 years, HARDI INTERNATIONAL has single-mindedly dedicated itself to improving the efficiency and precision of sprayed plant protection. Now a world leader in the field, HARDI recognises its role in global food security through the safe and sustainable application of agricultural compounds.

The Australian product development centre works closely with five other HARDI development centres internationally, to share local innovations with the world and to streamline the delivery of global improvements at home.
