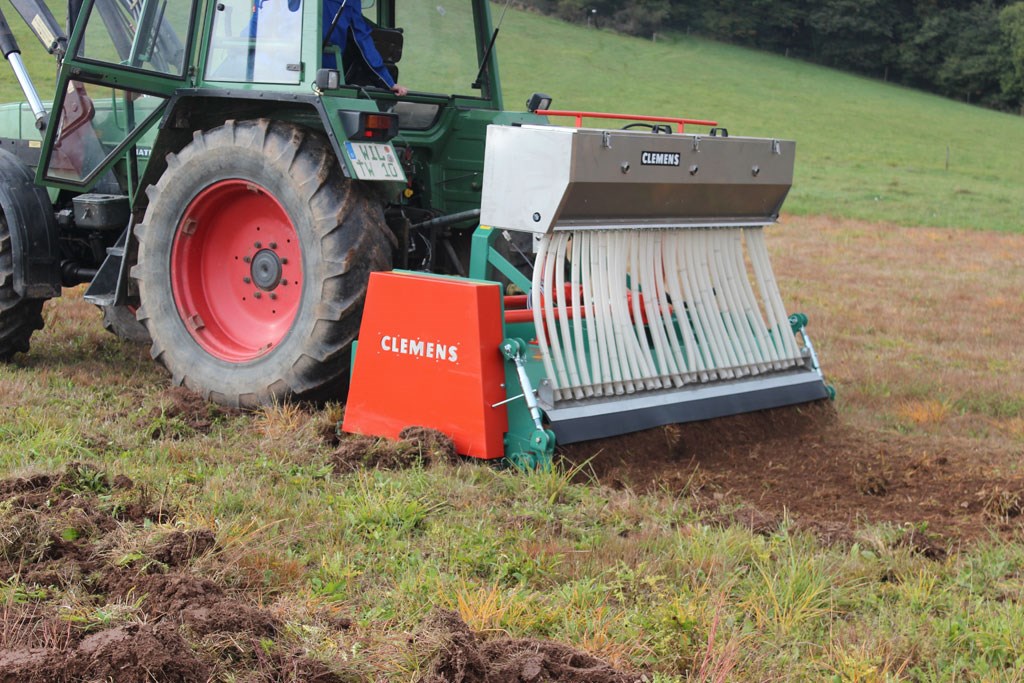

THE CLEMENS PLANIERMEISTER LEVELLING DEVICE FOR AGRICULTURE, VITICULTURE AND LANDSCAPE ENGINEERING.

The gears are driven by a drive shaft. Two robust and low maintenance chains transfer the power to the two counter-rotating rotors. The forward rotor, equipped with Hardox tools, mills and disperses the grass sods and the rear high-speed rotor that is equipped with cutting blades chops, flattens and scarifies the surface to an extremely flat level. The following back-up roller ensures optimal recompacting. The special arrangement of the pressure roller on the cutting blade rotor ensures self-cleaning.

The Planiermeister

  • Works to maintain grasslands over the soil horizon
  • Mills, shreds, disperses and levels
  • Preserves and improves the existing turf
  • Optimal forage quality as no grass sods remain on the surface
  • Can be combined with an (optional) sower attachment in a single process

TALK TO A SALESPERSON

This field is required
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.
reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


  Typ 140 Typ 255
Working width: approx. 1,400 mm approx. 2,550 mm
Overall width: approx. 1,610 mm approx. 2,700 mm
Power required: approx. 36 kW approx. 50 kW
